Typical Applications include Measurements of the Earth's field vectors, Air shipment inspection, Mapping and recording field perturbations, Magnet classification, Analysis of magnetic circuitry and components, Magnetic Resonance Imaging (MRI) and Measuring residual fields.

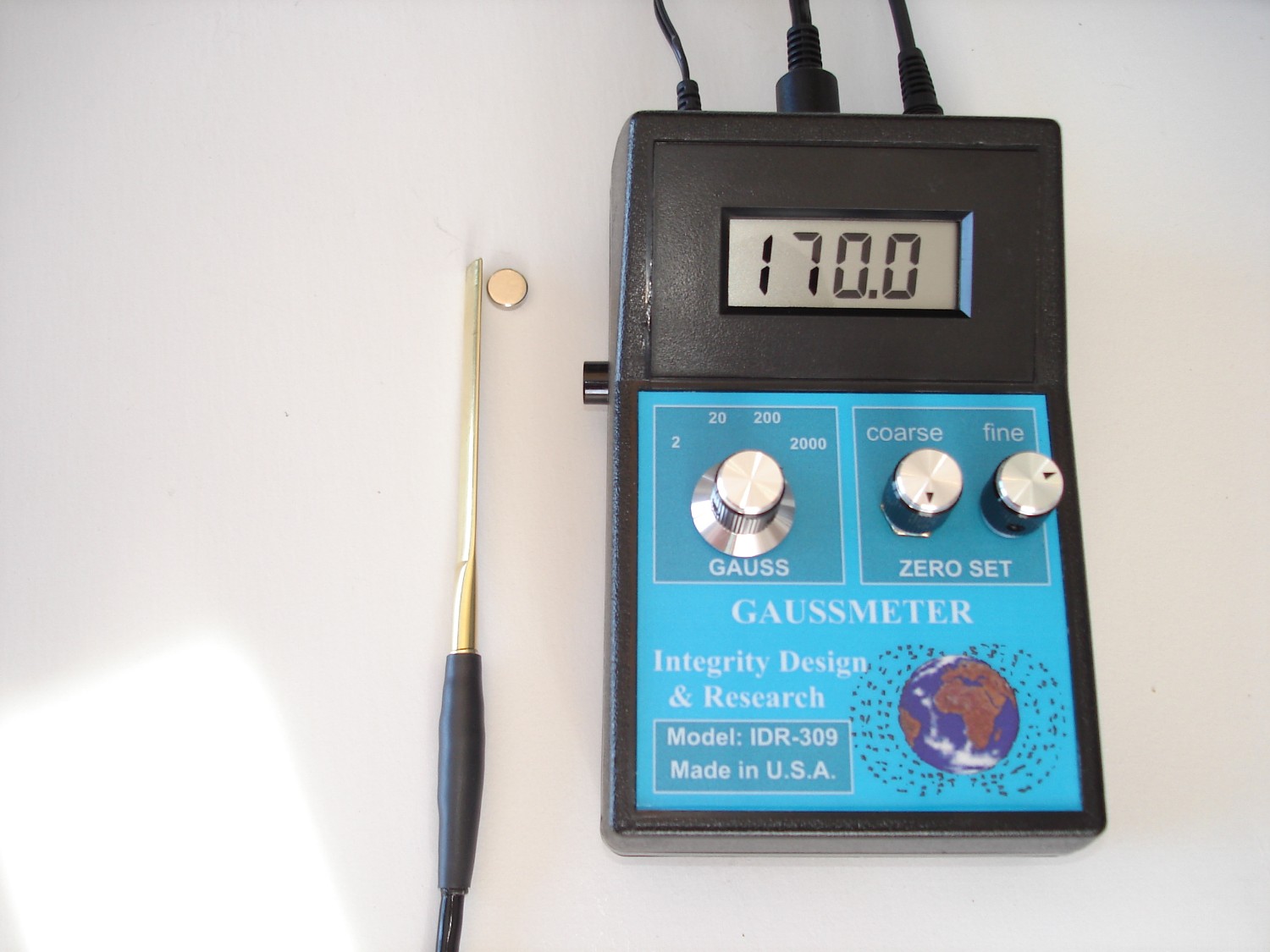

DC Gauss Meter Types (New Versions): Gaussmeter IDR-309-T (w/transverse hall probe): $525.00 Gaussmeter IDR-309-A (w/Axial hall probe): $525.00 New products: Gaussmeter IDR-309-T-A (w/transverse & Axial hall probe): $650.00 Amazing Sale! Buy now for BIGsavings Transverse Replacement Probe IDR-310-T: $125.00 Axial Replacement Probe IDR-310-A: $125.00 Similar features as the Kilo gaussmeter except the range Range: +/-2,+/- 20, +/-200, +/-2000 Gauss Excellent Resolution: @ scale 2 G: 1 mG, @ scale 20 G: 10 mG, @ scale 200 G: 0.1 G & @ scale 2000 G: 1 G. Higher range DC Gauss Meter Types (New Versions): KiloGaussmeter IDR-329-T (w/transverse hall probe): $525.00 KiloGaussmeter IDR-329-A (w/Axial hall probe): $525.00 New products: KiloGaussmeter IDR-329-T-A (w/transverse & Axial hall probe): $650.00 Amazing Sale! Buy now for BIGsavings Transverse Replacement Probe IDR-310-T: $125.00 Axial Replacement Probe IDR-310-A: $125.00 Kilogaussmeter Specifications Portable w/ Dimensions: 5.8"*3.6"*2.5" Range: 20 G, 200 G, 2kG, 20kG Bandwidth: 68HZ at 3db Comes with 9v DC adaptor & hard carrying case Analog Output: +/-200 mV DC FS 3 1/2 digit bipolar display Powered optional either by 9v battery or AC adaptor 3% error guarantee Resolution: @ scale 20 G: 10 mG, @ scale 200 G: 0.1 G, @ scale 2 KG: 1 G & @ scale 20 KG: 10 G. Hall effect transverse probe w/ 3.5' shielded cable Hall effect axial probe w/3.5' shielded cable is optional 2 Years Parts & Labor warranty Made in the USA

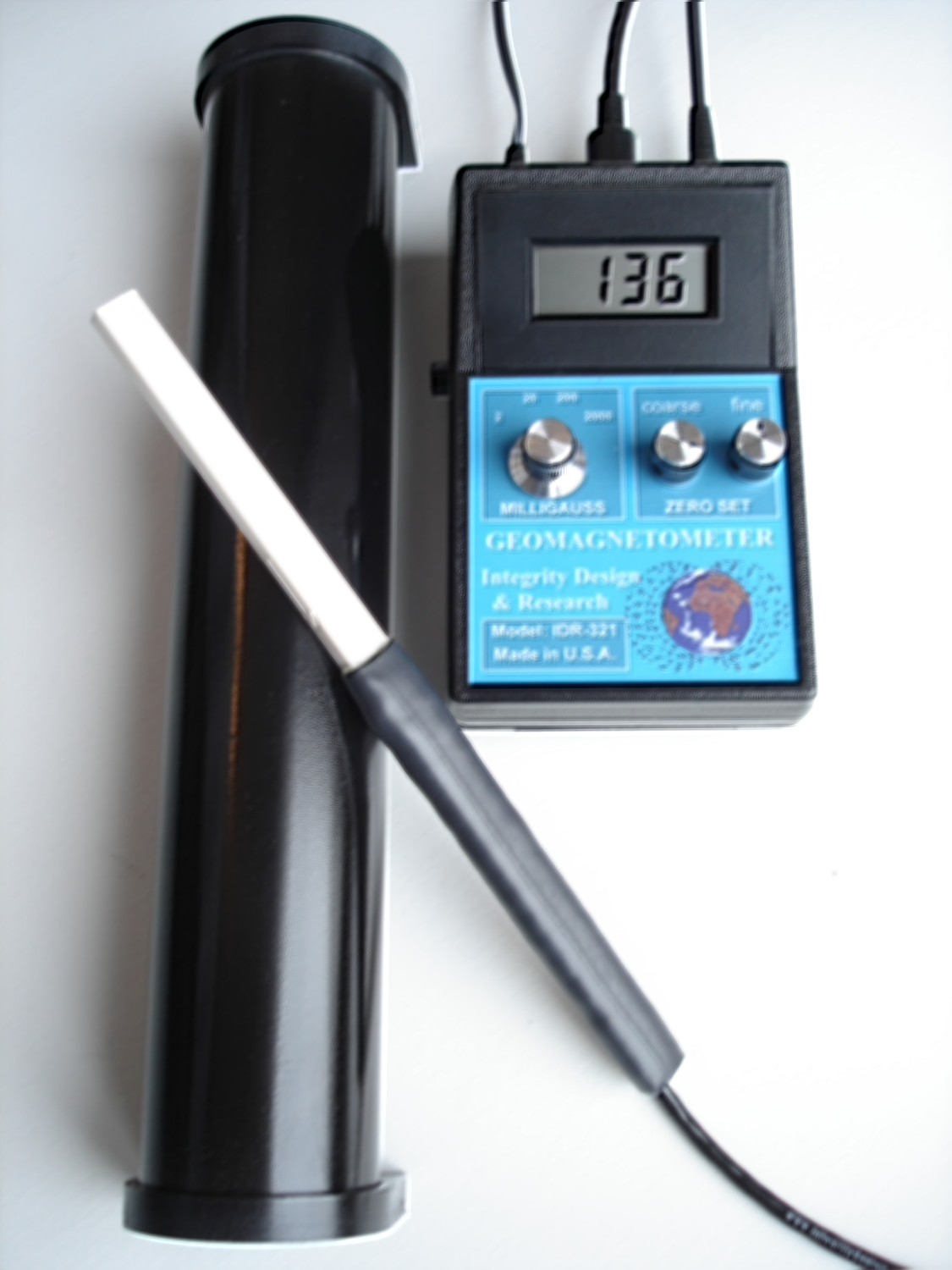

Geomagnetometer (New Version) IDR-321(w/Hall Probe) $750.00 Replacement Probe IDR-311: $350.00 Zero Gauss Chamber IDR-800: $350 It is recommended with the meter Specifications: Portable w/ Dimensions: 5.8"*3.6"*2.5" Range: 2, 20, 200, 2000 Milligauss recorder output Optional AC adaptor 5% error guarantee Portable & a hard case is included Bandwidth: 68 Hertz at 3db Resolution: @ scale 2: 1 uG, @ scale 20: 10 uG, @ scale 200: 100 uG & @ scale 2000 mG: 1mG. Battery Life: About 15 hours continuous use with 9V alkaline . Typical applications: Earth's field vector measurement, air shipment inspection, mapping & recording field perturbations, etc. 2 Years Parts & Labor warranty Made in the USA Sensor Probe: High sensitivity hall generator

Use with any DC Gaussmeter Listed Above to Log Field Strength, Frequency, & More!

Wonderful low price on this averaging digital multimeter! You can use it as a stand alone or connect it to your PC with the built in RS-232 serial interface to collect and analyze long term data on AC/DC voltage (0.01mV -1000V)w/0.08% accuracy, AC/DC current(0.1MicroA-20A), Resistance, Frequency (0.001 Hz - 125kHz), Capacitance and Diode test! Can be used with any analog output like Geomagnetometer(IDR-321), DC Gaussmeter(IDR-309 & IDR-329) & AC Milligaussmter(IDR-109, IDR-119, IDR28),etc. Includes powerful Windows based software which allows users to determine sampling rate, live Analog and digital displays on the PC screen, plot data with Max/Min values, easily Save data to a file, limit comparator with GO/No Go displays and alarm. Requires minimum 16MB RAM. 3-years mfr. warrantee.
Extech DMM with PC Interface (IDR-MP510) ..................... $249.00

Wonderful low price on this True RMS multimeter datalogs up to 43,000 data points at capture rates as fast as 20 times/second! You can use it as a stand alone or connect it to your PC with the built in RS-232 serial interface to collect and analyze long term data on AC/DC voltage (0.01mV -1000V), AC/DC current(0.1UA to 20A), Resistance(0.01Ohm to 50MOhm), Frequency (10Hz - 125kHz), Capacitance(0.01nF to 999Uf) and Diode test! Can be used with any analog output like Geomagnetometer(IDR-321), DC Gaussmeter(IDR-309 & IDR-329) & AC Milligaussmter(IDR-109, IDR-119, IDR28, IDR-28), etc. Includes powerful Windows based software which allows users to determine sampling rate, live Analog and digital displays on the PC screen, plot data with Max/Min values, easily Save data to a file, limit comparator with GO/No Go displays and alarm. Requires minimum 16MB RAM. 3-years mfr. warrantee.
Extech DMM with PC Interface (IDR-ML720) ..................... $299.00

Connector Cables:

Perfect for connecting DMM to meters with 1/8" jack output. 1/8" plug on one end, dual banana plug on other end.
1/8" to Dual Banana Connector Cable (IDR-1/8-Ban) ......... $14.95

Perfect for connecting DMM to meters with RCA jack output. RCA plug on one end, dual banana plug on other end.
RCA to Dual Banana Connector Cable (IDR-RCA-Ban) ........ $14.95

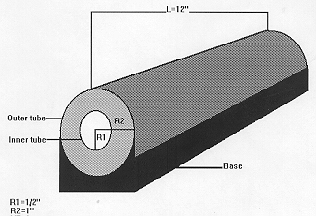

Zero Gauss Chamber IDR-800 $350.00 Features: Two cylindrical tubes are equal in length (12"), one is inside the other, both of them are closed at one end. At the other end, the inner tube is open (Radius=1/2"). The cylindrical tubes are made from MU metal. The magnetic field inside the inner tube is almost annulled. Optional use with the Geomagnetometer IDR-321 to provide a zero gauss (magnetic field-free environment) reference, enabling you to take absolute readings of the ambient magnetic field (the Earth's magnetic field is typically around 500 mG) Made in the USA

5100 Series hall effect portable Gauss/Tesla-Meters

AC/DC Gaussmeter made by F.W.Bell

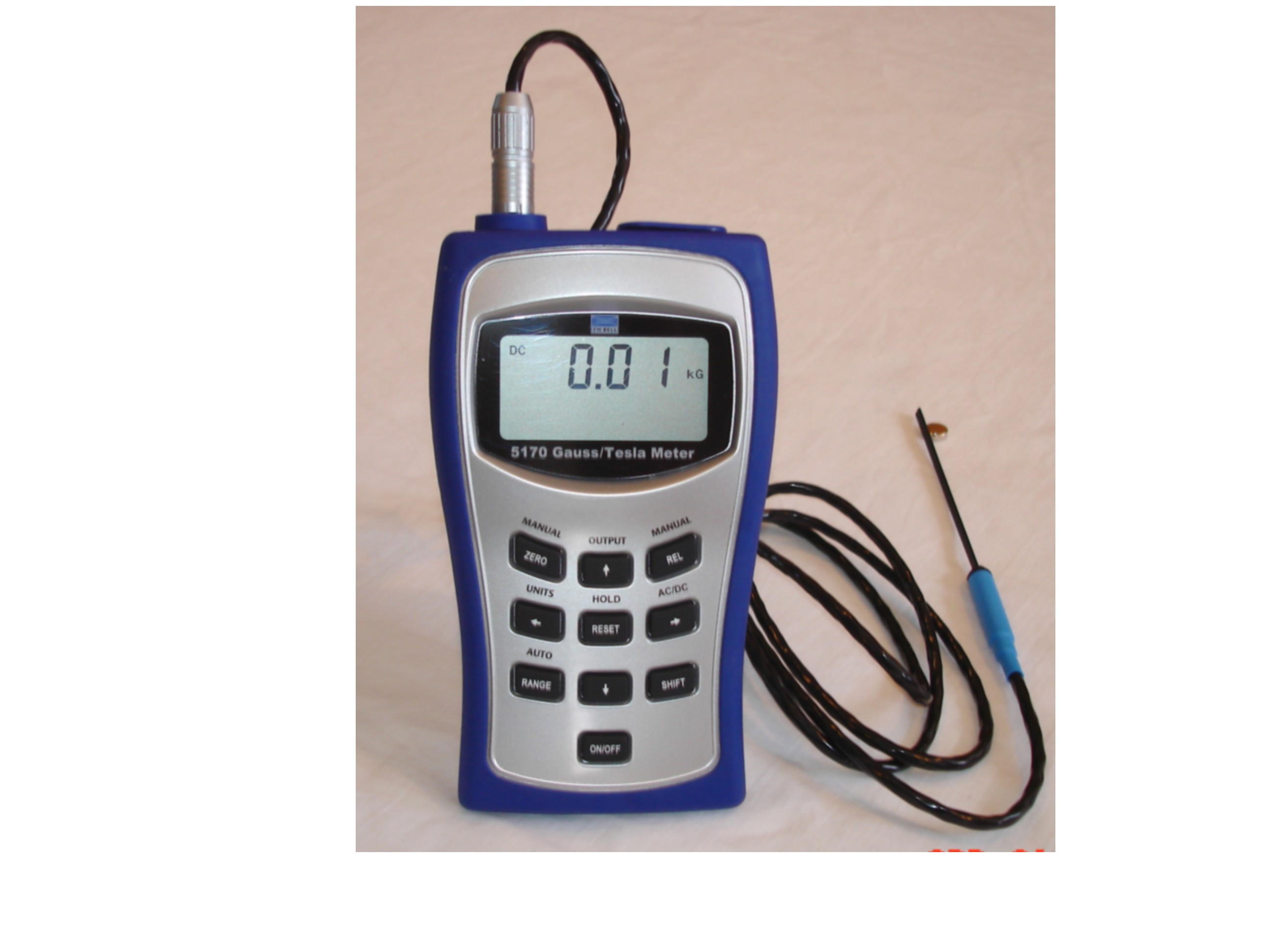

The 5100 Series hall effect portable Gauss/Tesla-Meters represent the recent design from the world leader in magnetic AC & DC measuring equipment. This new design incorporates the use of digital signal processing technology making it the world's first hand-held gaussmeter to have a digital signal processor (DSP) on board. F.W.Bell's exclusive Dynamic Probe Connection allows measurements from 0 to 30 KG with basic accuracy of 1%. Typical applications include: Magnetic Testing & Classification, DC & AC Motor Testing, Magnetic Field Mapping, Residual Field Testing, Relay and Solenoid Inspection. All instruments are CE Compliant.
The 5100 Series Hand-Held Gauss/Tesla-Meters' built-in software eliminates the need for complex calibration procedures. User prompts on the custom formatted LCD allow fast, simple push button operation. All models (5170 & 5180) come equipped with a detachable transverse or axial probe, zero gauss chamber, instruction manual, hard carrying case, four AA batteries and Adaptor. Axial, ultra thin transverse and other style probes are available as options.

Key features also include: Auto Zero: Yes, the best accuracy in it's class Data logging capability, Min/Max/Peak Hold 100X lower resolution(with low-field probe), Auto Range Frequency Response 2X better than Competitor, relative Mode The only handheld meter with DSP, Universal Serial Bus Interface 4 AA batteries or external adapter size  (length*width*height): 6.9"*3.9"*1.44"

Key features for 5170 also include: Auto Zero: Yes, Basic accuracy: 2% Min/Max: Yes, True RMS: Yes, Auto Range: YES, Sampling Rate: 4 Samples/sec Frequency Bandwidth: DC-20 KHZ, Ranges(3): Low Range: 200 G, Mid Range: 2 KG, High Range: 20 KG, Ultra Low Range(Low-field probe only): 1 G Resolution: Low Range: 0.1 G (10 uT), Mid Range: 1.0 G (100 uT), High Range: 10 G(1 mT), Ultra Low Range(Low-field probe only): 1mG(0.1uT) Display: 3 1/2 digit LCD display, Readings: Either Gauss, Tesla Operating Temperature 0oC To + 50oC & Storage: -25oC To +70oC 4 AA batteries or +5VDC Regulator external adapter size (length*width*height): 6.9"(175.26mm)*3.9"(99.06mm)*1.44"(36.57mm) AC&DC GAUSSMETER Model: IDR-fw5170......$965.00: In Stock  with FWBELL part no.: 5170 SAH17-1904......$275: In stock STB1X-0201......$400: In stock           MOS51-3204: Low Field Axial Probe...            $767.00: In Stock Please call us for other selections of probes

Key features for 5180 also include: Auto Zero: Yes, Basic accuracy: 1% Min/Max: Yes, True RMS: Yes, Auto Range: YES, Sampling Rate: 4/sec True Peak hold: Yes, Relative Mode: Yes, Analog output: 200K samples/sec, Communication Port: USB(1 samples/sec) Frequency Bandwidth: DC-30KHZ, Ranges: Low Range: 300 G, Mid Range: 3 KG, High Range: 30 KG, Ultra Low Range(Low-field probe only): 1G Resolution: Low Range: 0.1 G (10 uT), Mid Range: 1.0 G (100 uT ), High Range: 10 G(1 mT), Ultra Low Range(Low-field probe only): 1mG(0.1 uT) Display: 3 1/2 digit LCD display, Readings: Either Gauss, Tesla or Ampere/Meters Analog Output; +/-3V F.S., Communication Port: USB(1 Samples/sec) Operating Temperature 0oC To + 50oC & Storage: -20oC To +60oC 4 AA batteries or external adapter size (length*width*height): 6.9"(175.26mm)*3.9"(99.06mm)*1.44"(36.57mm) AC/DC GAUSSMETER Model: IDR-fw5180......$1300.00: In Stock with FWBELL part no.: 5180   SAD18-1904......$300: In stock MOS51-3204: Low Field Axial Probe... $767.00:In Stock   STD18-0402....$300: In stock Please call us for other selections of probes

MAGNETIC SHIELDING FOIL ("Mu Metal")

"High permeability Material exellent for Shielding DC, ELF & VLF Magnetic Fields"

Mu Metal Magnetic shielding (Mumetal) protects electronic circuitry, electron beam in a cathode ray tube like VDT, TV, computer etc. and also it separates the victims from magnetic interference (EMI). Usually, the sources of this interference are permanent magnets, transformers, motors, solenoids and cables. It is now available at affordable prices for home and office use. This mumetal alloy (80% nickel, 15% iron, 4.2% molybdenum) is easy to trim with scissors and shape by hand. Can be formed into magnetic barriers on VDTs, buried wiring, speaker and more. With snug fitting shapes, get as much as 70% attenuation of the magnetic field with one thickness. Use multiple layers for even greater reduction. The shield shape plays an important role in the reduction of the of the magnetic sources. Closed shapes are the most effective for magnetic shielding such as cylinders. We recommend the use of an accurate gaussmeter made by Integrity Design to determine the proper shape and positioning of the shielding, and to confirm that the fields have been adequately reduced. CAUTION: Foil has sharp edges, We suggest to wear a special gloves IDR-801 (Mu metal 0.004" thick, 16" wide): $24.95/linear ft We can provide you with coils, sheets, tubing & custom shielding from our large inventory. Please call for your request Minimum order is: 3 ft Quantity Pricing: Order 200 linear feet (or more) and pay just $24.00/linear ft Order 500 linear feet (or more) and pay just $23.00/linear ft Order 1000 linear feet (or more) and pay just $22.00/linear ft Specifications Provides protection against AC & DC magnetic field radiations. 0.004" thick or higher one layer of shielding provides 50-60% attenuation at 60 Hz or even more.

F W Bell Bench Top Gaussmeters : AC/DC Magnetic Measurement

For more information & Technical support, please contact Saba Hanna @ (802) 872 7116
Email:  saba@integritydesign.com

Model 6010 Hall Effect Gaussmeter full details

Model 6010 Hall Effect Gaussmeter: IDR-fw6010 Price - $ 2492.00 Probes are sold separately HTD61-0608-05-T....$800 in stock Description The Model 6010 Hall-effect gaussmeter represents the latest innovations and state-of-the-art designs from the world leader in magnetic measuring equipment. F.W. Bell's exclusive Dynamic Probe Correction feature, along with temperature compensation,  allows measurements up to 300 kG with a basic accuracy of 0.25%.

Key features include Peak Hold, Max/Min Hold, Auto Zero, Auto Range, Relative Mode and Temperature measurement.  The Model 6010 allows the user to select Gauss, Tesla or Ampere/Meter readings. The Model 6010 also features a corrected analog output (± 3 V Full Scale for each range), an RS-232 communications port, a rechargeable battery and probe temperature compensation. The Temperature measurement feature, used with the new 6000 Series 5th Generation Hall-effect gaussmeter probes, allow the user to take temperature readings (-40 0C to +85 0C) while monitoring the magnetic field.  The easy-to-read large format alpha-numeric LCD, with dual 3 3/4 digit read outs, gives the user magnetic field flux density readings while also displaying temperature (or Peak Hold, or Max/Min Hold) User prompts on the custom formatted LCD allow fast, simple push button operation. All models come equipped with a zero gauss chamber, accessory hard case, built-in rechargeable battery, quick reference card and instruction manual. A wide range of axial and transverse probes are available as options & sell separately. Applications for the Model 6010 range from the most sensitive laboratory environments to rugged industrial settings. All instruments are fully CE compliant. Features Large Format LCD Dual 3 3/4 digit readouts Temperature measurement (-40 0C to +85 0C) Displays in Gauss, Tesla or Ampere/Meters Peak Hold Max/Min Hold Corrected Analog Output Auto Range with resolution of 1 mG Temperature Compensated Probes Auto zero/Auto calibration RS-232 Interface Rechargeable Battery Compatible with Model 9200 probes Frequency Response from DC-20KHZ Ranges 300 mG, 30 G, 300 G, 3 KG, 30 KG, 300 KG CE Compliant

---

Related Links: 7010 Single Channel... 7030 Three Channel... download firmware Update... 7000 Series Probes... 7000 Series  Advanced Hall Effect Gauss/Tesla-Meters Exactly What You've Been Waiting For! The F.W.Bell 7000 Series Gauss/Tesla-Meters lead the way for Advanced Hall Effect Magnetic measuring technology. The easy-to-use front-panel programming feature incorporates the latest in user control operations.  The 7000 Series instruments are capable of simultaneously measuring and displaying seven different parameters per channel -- 27 total parameters for the 7030 three-channel model. The single-channel 7010 and three-channel 7030 models are high accuracy instruments fully equipped to meet most all magnetic measuring applications. And F.W. Bell's exclusive dynamic probe correcting software actually increases the 7000 Series measurement capabilities to make it the most versatile magnetic measuring tool in the world. Key features include high-resolution, high-accuracy and high-speed with a bright 1/4 VGA display.  The 7000 Series  features 50 kHz frequency response, a 100 samples-per-second update rate, temperature and frequency measurements, Auto Zero, Auto Range, Hold functions for Peak, Valley, Min and Max, corrected and uncorrected outputs for each  channel and Vector Summation and angle (three-channel model). The 7000 Series provides Gauss, Tesla, Oe and A/m, as well as IEEE-488, RS-232 communications ports and Classifier output, and are fully CE compliant. Features Bright 1/4-VGA readout Fully menu-driven for easy operation Large electroluminescent graphic display Auto Zero and Auto Calibration Over 100 standard probes available Automatic probe coefficient correction Displays in Gauss, Tesla, Amps/meter or Oe Peak/Valley capture Relative mode IEEE-488 and RS-232 interface CE compliant Manufactured to ISO 9000 standards Comprehensive Technical Support   Product Details & Specifications    Instrument Accessories 7000 Series probes  - A complete line of precision probes, with enhanced performance on the 7000 series instrument. 7000 Series Soft Carry Case - A rugged case with locations for manual and probes. Reference Magnets - Used to verify the calibration of a Gauss/Tesla-Meter.   Technical Support for the 7000 series - Online technical support resources for the 7000 series, including manuals, FAQs, firmware upgrades & utilities. Or contact our Sr.Engineer Saba Hanna @ (802) 872 7116

7010 Single Channel Advanced Gauss/Tesla- Meter.....$4365.00 Note: Probes are sold separately 7010: Used model (Very Good Condition) .....$2500.00 In Stock The Model 7010 single-channel Advanced Gauss/Tesla-Meter from F.W. Bell is capable of simultaneously measuring and displaying seven different parameters per channel -- flux density, frequency, temperature, min, max, peak and valley. Key features include high-resolution, high-accuracy and high-speed with a large graphic  electroluminescent display.  The 7010 provides 50-kHz frequency response, temperature and frequency measurements, Auto Zero, Auto Range, Hold functions for Peak, Valley, Min and Max, corrected and uncorrected outputs for  each channel and Vector Summation and angle. The Model 7010 provides the user with gauss, tesla, Oe, A/m, IEEE-488 and RS-232 communications ports and Classifier output. The 7010 operates with Bell's fifth generation Hall Effect probes.  These probes provide temperature compensation and  measurement readings (-40°C to +100°C) while monitoring the magnetic field.  Applications range from basic magnetic measuring to sensitive complicated three-axis vector summing requirements. Front Panel View  Rear Panel View  More Information: Features Bright 1/4-VGA readout Fully menu-driven for easy operation Large electroluminescent graphic display Auto Zero and Auto Calibration Over 100 standard probes available Automatic probe coefficient correction Displays in Gauss, Tesla, Amps/meter or Oe Peak/Valley capture Relative mode IEEE-488 and RS-232 interface CE compliant Manufactured to ISO 9000 standards Comprehensive Technical Support    Specifications

---

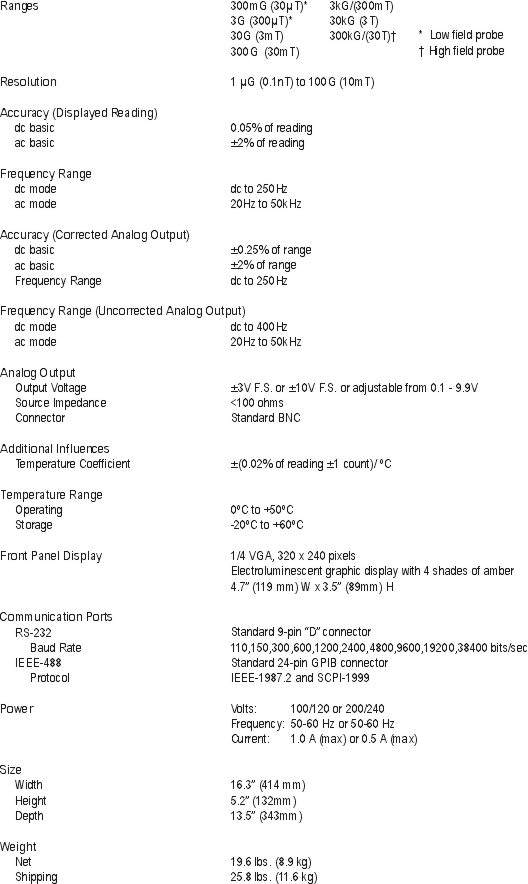

7030 Three Channel Advanced Gauss/Tesla-Meter...........$6864.00 Note: Probes are sold separately The Model 7030 three-channel Advanced Gauss/Tesla-Meter from F.W. Bell is capable of simultaneously measuring and displaying seven different parameters per channel -- flux density, frequency, temperature, min, max, peak and valley.  With its vector summation feature, the 7030 can measure and display a total of 27 different parameters. Key features include high-resolution, high-accuracy and high-speed with a large graphic  electroluminescent display.  The 7030 provides 50-kHz frequency response, temperature and frequency measurements, Auto Zero, Auto Range, Hold functions for Peak, Valley, Min and Max, corrected and uncorrected outputs for  each channel and Vector Summation and angle. The Model 7030 provides the user with gauss, tesla, Oe, A/m, IEEE-488 and RS-232 communications ports and Classifier output. The 7030 operates with Bell's fifth generation Hall Effect probes.  These probes provide temperature compensation and  measurement readings (-40°C to +100°C) while monitoring the magnetic field.  Applications range from basic magnetic measuring to sensitive complicated three-axis vector summing requirements. Front Panel View  Rear Panel View    Features Bright 1/4-VGA readout Fully menu-driven for easy operation Large electroluminescent graphic display Auto Zero and Auto Calibration Over 100 standard probes available Automatic probe coefficient correction Displays in Gauss, Tesla, Amps/meter or Oe Peak/Valley capture Relative mode IEEE-488 and RS-232 interface CE compliant Manufactured to ISO 9000 standards Comprehensive Technical Support   Specifications

---
